Hose Couplings

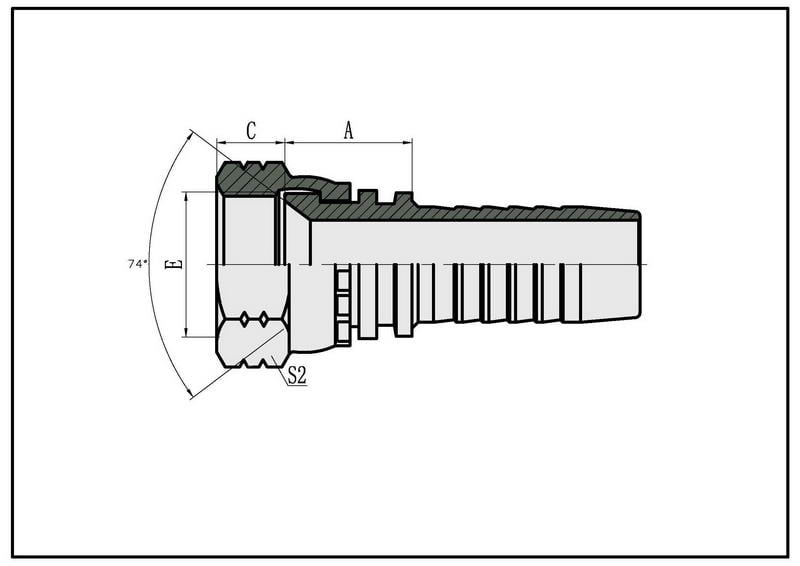

26711 JIC FEMALE 74° CONE SEAT
|
JIC FEMALE 74° CONE SEAT |
Shape: Straight
Size: 1/8" – 1"
Salt Spray: 96h / 700hh
Std: ASTM 1045 / SS316
Key Features
- Weld-Free
ISO 9001
Certified
CE / TUV
Compliant
14-Month
Warranty
Zero Leak
Guaranteed
Technical Specifications
Port Configuration
1
Port 1
Type
Female
Standard
JIC
2
Port 2
Type
Hose Tail
Standard
SAE
Material & Compatibility
Material
Carbon Steel (GB35#)
Carbon Steel (GB45#)
SS304
SS316
Surface Treatment
CR3+ Zinc Plating
Zinc-Nickel
Thread Standard
JIC
Compatible Hose
EN 853 1SN
EN 853 2SN
EN 857 1SC
EN 857 2SC
SAE 100R1
SAE 100R2
Size Specifications
7 variants
| Part No. | Port 1 Size | Port 2 Size |
|---|---|---|
| 26711-04-04 | 7/16"X20 | 04 |
| 26711-05-05 | 1/2"X20 | 05 |
| 26711-06-06 | 9/16"X18 | 06 |
| 26711-08-08 | 3/4"X16 | 08 |
| 26711-10-10 | 7/8"X14 | 10 |
| 26711-12-12 | 1.1/16"X12 | 12 |
| 26711-16-16 | 1.5/16"X12 | 16 |
Quality Guarantee
NO LEAK
Precision-machined sealing surfaces
NO CRACK
Weld-free electric furnace steel blanks
NO BLOW OFF
Crimped & tested to spec
NO BURST
High-pressure durability tested
Certifications
ISO 9001:2015
CE Marking
TUV Certified
SGS Test Reports
14-Month Warranty
Full coverage on defects in materials and workmanship from date of delivery.
